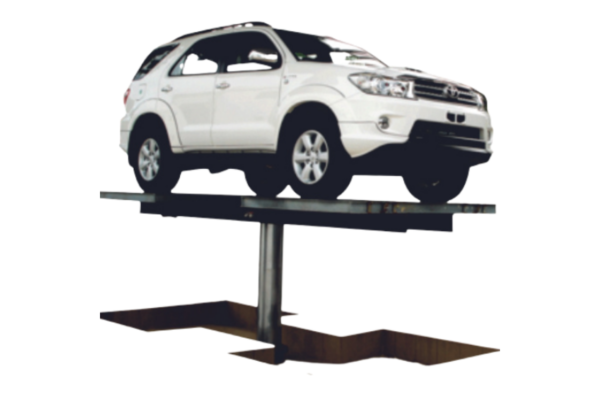

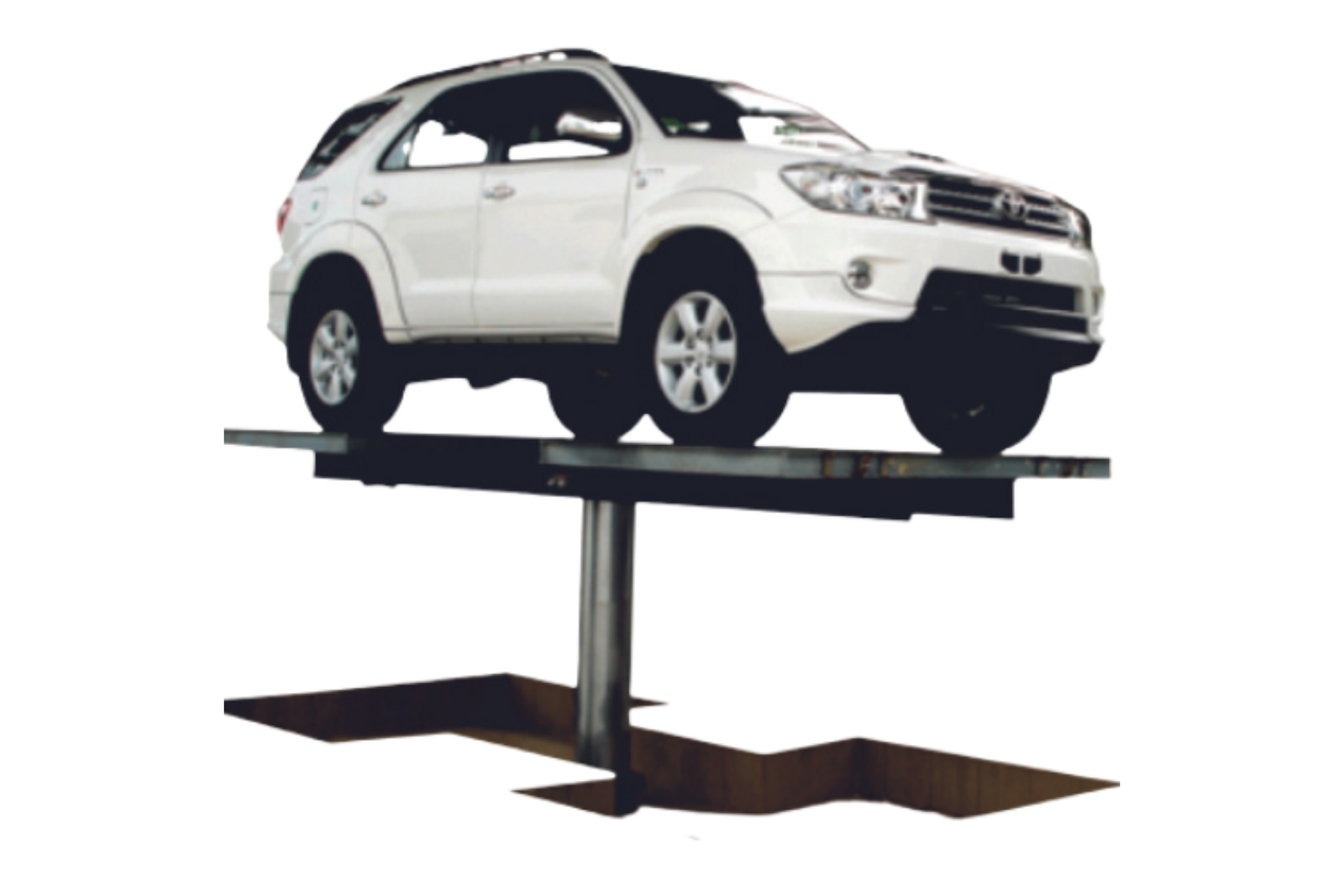

WASHING LIFT TIRE REST
TECHNICAL SPECIFICATION:
WASHING LIFT TIRE REST
| Lifting capacity | :3200 Kg |
| Load sharing | :Max.6:4 in or against drive-on direction |
| Max. Lifting height | :1200 mm |
| Entire Lifting (Dropping)Time | :40-60 Sec |
| Motor speed | :2850 rounds/minute |
| Output of oil pump | :2.0 ml/round |
| Set pressure of the overflow valve | :18 MPa |
| The pressure of the air source | :0.6-0.8 MPa |
| Solenoid valve pressure | :AC220 V /50 Hz |
| Motor power | :2.2 Kw |
| Supply voltage | :AC220/380V/50 Hz；AC230/400V/50 Hz |
MORE INFORMATION
- High grade steel cylinder manufactured to close tolerance with hard chrome plating for high wear resistant.
- Also gives a clean good finish.
- Uniquely designed wiper rings seal to prevent entry of water and dirt particles into the hoist cylinder while raising, servicing and lowering.
- Gland rings used in cylinder to increase performance.
Always use recommended hydraulic oil 68 grade.
